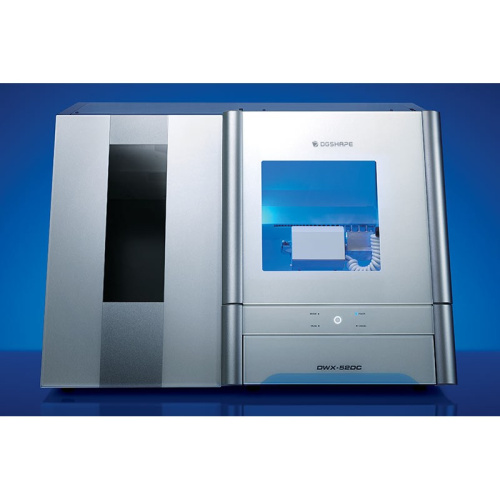

Roland DWX-52DCi Milling Machine with Automatic Disc Changer
$13,150.00
The ultimate in ease, material flexibility and unattended production, the DWX-52DCi dental milling machine with automatic disc changer expands your lab production and profit. With a 6-slot Automatic Disc Changer, 15-station Automatic Tool Changer and other automated features, it gives users of all skill levels an exceptionally powerful, efficient and affordable dental restoration solution.
Specifications
| DWX-52DCi | ||
| Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Fiber reinforced resin, soft milling CoCr sintering metal | |
| Loadable workpiece shape | Step section: | 98.5 mm (diameter), height 10 mm |
| Body section: | 95 mm (diameter), height max. 35 mm Pin diameter: 6 mm | |
| Pin diameter: | 6 mm | |
| Loadable workpiece weight | Up to 850 g | |
| Number of adapters housed | 6 | |
| Operating speed | XYZ axis: | 0.24 to 70.9 in./min.(6 to 1,800 mm/min.) |
| Spindle motor | Brushless DC Motor | |
| Spindle speed | 6,000 to 30,000 rpm | |
| Rotary axis travel angle | A: | ±360° |
| B: | ±30° | |
| Number of burs housed | 15 | |
| Attachable bur | Shank diameter: | 4 mm |
| Length: | 40 to 55 mm | |
| Compatible compressed air | 0.2 MPa | |
| Interface | USB | |
| Control command set | RML-1, NC code | |
| Power requirements | AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1) | |
| Power consumption | Approx. 200 W | |
| Operating noise | During operation: | 70 dB (A) or less (when not cutting), |
| During standby: | 45 dB (A) or less | |
| External dimensions | Width x Depth x Height: | 34.6 x 26.0 x 23.6 in. (880 x 660 x 600 mm) |
| Weight: | 105 kg (231.5 lbs.) | |
| Installation environment | Indoor use, Altitude: Up to 2,000m (6,562 ft.), Temperature: 5 to 40 ℃ (41 to 104°F), Humidity: 35 to 80 % (no condensation), Ambient pollution degree: 2 (as specified by IEC 60664-1), Short-term temporaty overvoltage: 1440 V, Long-term temporaty overvoltage: 490 V | |
| Included items | Power cord, Power plug adapter, USB cable, Manuals, Roland DG Software Package CD, Detection pin, Automatic correction jig, Pin-type material adapter, Hexagonal driver, Spanner, Milling bur holders, Milling bur positioner, Dust collection hoses, Dust collection hose adapter, Regulator, Cleaning tool, Option adapter labels, Material adapters | |
System requirements for USB connection
| Operating system (OS)* | Windows® 7/8/8.1/10 (32 or 64 bit) |
| Optical drive | CD-ROM drive |
| USB cable | Use the included USB cable |
- Availability: 11 In Stock
- Model: DWX-52DCi
