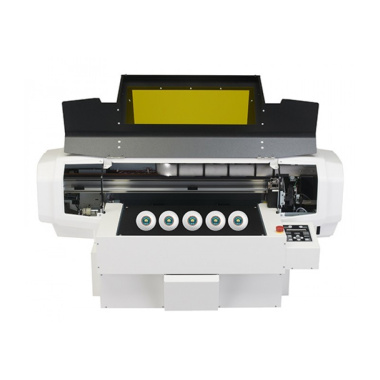

Mutoh ValueJET 426UF 19" UV-LED Desktop Color Printer

$5,450.00
Qty:
Add to Cart Buy Now
Print
Specification :

 Print TechnologyDrop-on-demand Micro Piezo Inkjet Technology
Print Head1
Nozzle Configuration180 nozzles x 8 lines
Drop Mass Range (pl)3.8 to 28
LED UV lamp life14.250 hours
ValueJet 426UF - Media Specifications
Size Print Table483 mm (19") x 329 mm (12,95”)
Max. Print Area473 mm (18,62”) x 319 mm (12,55")
Max. Media ThicknessUp to 70 mm (2,75")
Max. Media Weight4 kg
Media Drying SystemLong life LED UV curing lamp
Vacuum SystemStandard integrated - electronically adjustable hold-down strength
ValueJet 426UF - Performance
 4-colour setup6-colour setup
 CMYKCMYK onlyWhite onlyLayer Print *
Speed in tables per hour (excl. unloading / loading time) **
1440 x 1440 Uni6261
720 x 1440 Uni136133
720 x 1080 Bi2814287
* : CMYK + White + Varnish
** : 1 Table corresponds to 0,15 m²
ValueJet 426UF - Ink Specifications
Ink TypeLED UV inks
Ink Colours / VolumeCMYK & Varnish - 220 ml cassette
White - 220 ml cassette
Ink SetupCMYK (CCMMYK)
CMYK + White + Varnish (CMYK+Wh+Va)
Ink Consumption *1.6 ml / table
* : Average ink consumption at @720 dpi - coverage of 67 %
CompatibilityABS, Alu Board, Glass, PC, PE, PET, PMMA (acrylic), PP, PS, PVC, Tyvek® *
* : Ink adhesion will vary among media type and brand. Individual testing is required in function of your specific application.
ValueJet 426UF - Power Consumption
During Printing< 330 Watt
Power SupplyAC 100-120 V / AC 200-240 - 60/50 Hz - ≤ 4.0 A / ≤ 2.0 A
ValueJet 426UF - Recommended Working Environment
Temperature20 °C - 32 °C with Δt: max. 2 °C/h
Humidity40 % - 60 % (no condensation) with ΔRH: max. 5 % RH/h
ValueJet 426UF - Machine Measurements
Width x Depth x Height1188 x 839 x 545 mm
Weight72 kg
  • Availability: 13 In Stock
  • Model: ValueJET 426UF 19" UV-LED
